BP-400 Pull Type Arc Spray Equipment

The arc spray equipment is mainly used for large-area anti-corrosion of steel structures, surface repair of parts, and preparation of capacitive conductive coatings. According to the production needs of different working conditions, the arc spray gun can be fixed on the robot to spray regular large workpieces. Mainly spraying Zinc and Aluminum and other metal wires.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Arc spraying is mainly used for large-area anti-corrosion of steel structures, surface repair of parts, and preparation of capacitive conductive coatings. According to the production needs of different working conditions, the arc spray gun can be fixed on the robot to spray regular large workpieces. Mainly spraying Zinc and Aluminum materials.

Gun Weight

3KG

Compressed Air Pressure

≥0.5MPa

Compressed Air Consumption

Air Cap Diameter Ø 6

Air Cap Diameter Ø 7

M³/min

1.8

2.4

Gun feeding wire Pressure

≥8kg

Spraying efficiency

Ø 2  Zinc 200A

Ø 2

Alum. 200A

20kg/h

6.5kg/h

   Current and Pressure

     Spraying material

Wire size

Non Load Voltage

Work Power

Zinc, Alum., Alloy Copper, Carbon Steel, Stainless Steel,

Ø 1.6~Ø 2

35~40V

120~200A

Ø 3

25~38V

150~240A

Air Cap

Spraying material Diameter(mm)

Air Cap Dia.(mm)

Ø 1.6~Ø 2

Ø 6~Ø 7

Ø 3

Ø 9~Ø 10

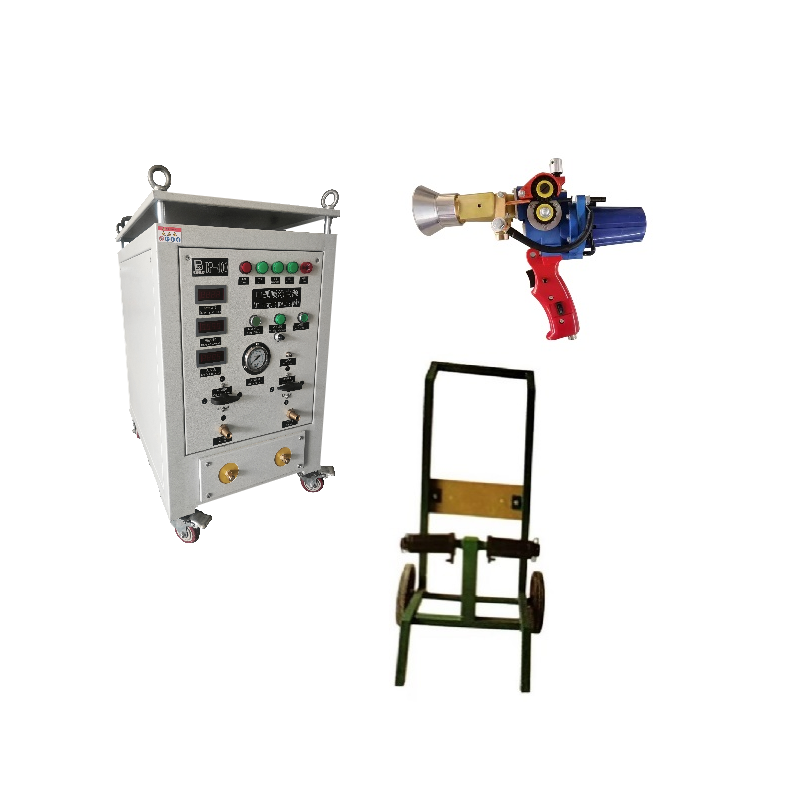

BP-400 Pull Type Arc Spray Equipment includes Arc spray gun, Power supply and Wires feeder.

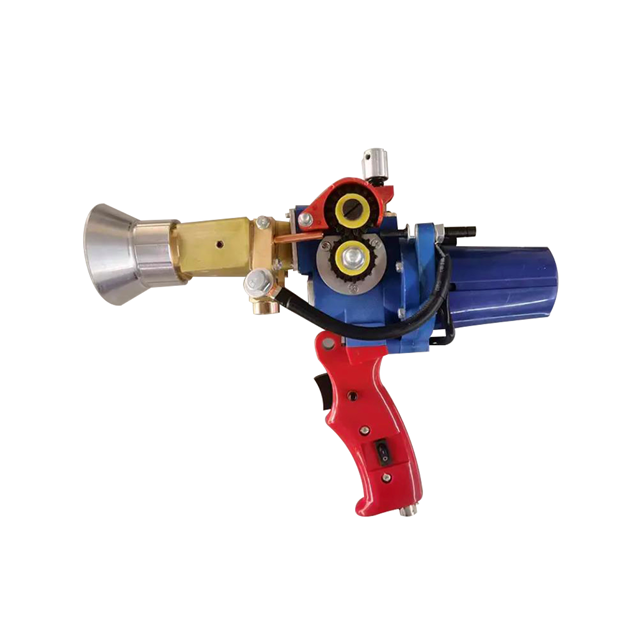

1. The arc spray gun can be manual operated or fixed on Robot. One button ON/OFF operation.

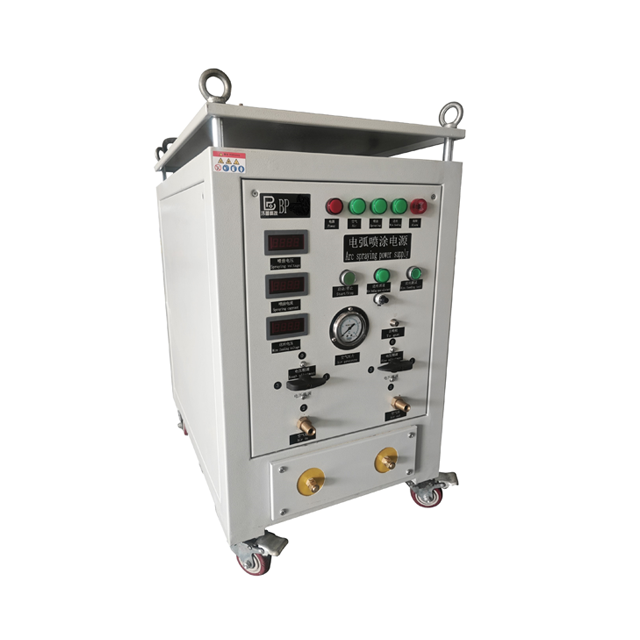

2. The power supply is 20KW, Siemens controller with one-button copperation and copper coil transformer. It can display the fault on indicator lights.

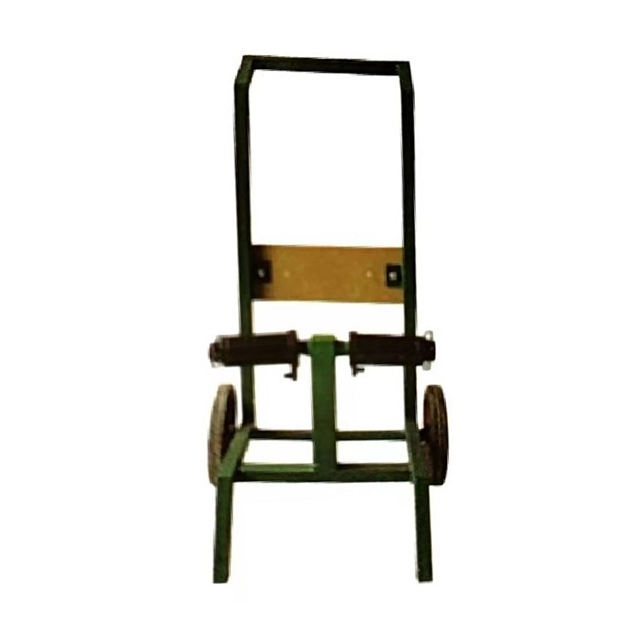

3. The wire feeder is is convenient for outside large workpiece construction. The max. wire is Ø 300 ×Ø 50 × 103mm, single wire reel is 20kg.

Application on Spraying various of metal and alloy wires for corrosion resistance, conductive, heat conductive and repair project. Like Bridge, iron tower, oil tank, water tank, mine cart, hull and deck, cookware, container, sluice gate, TV tower, power station condensation tower, syrup tank, armature bushing, propeller, structural steel component, acid-resistant equipment and so on.

Previous:
Next:
BP-400 Pull Type Arc Spray Equipment

Related Products

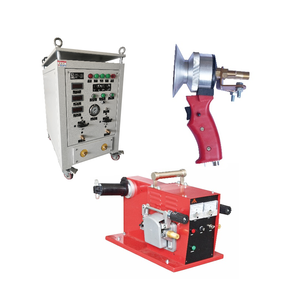

BP-400 Push Type Arc Spray Equipment
