BP-8000 Kerosene HVOF Spray Equipment

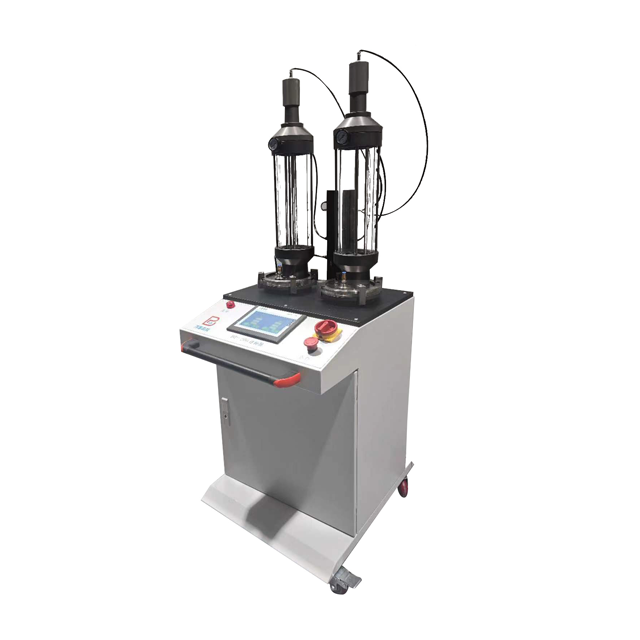

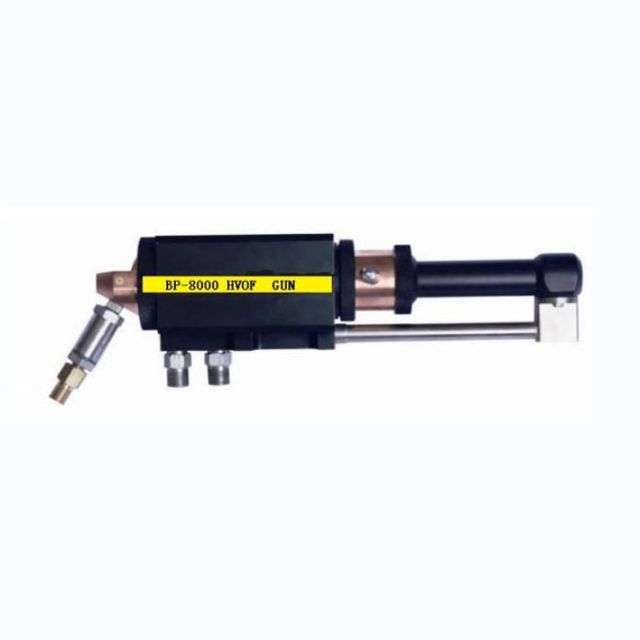

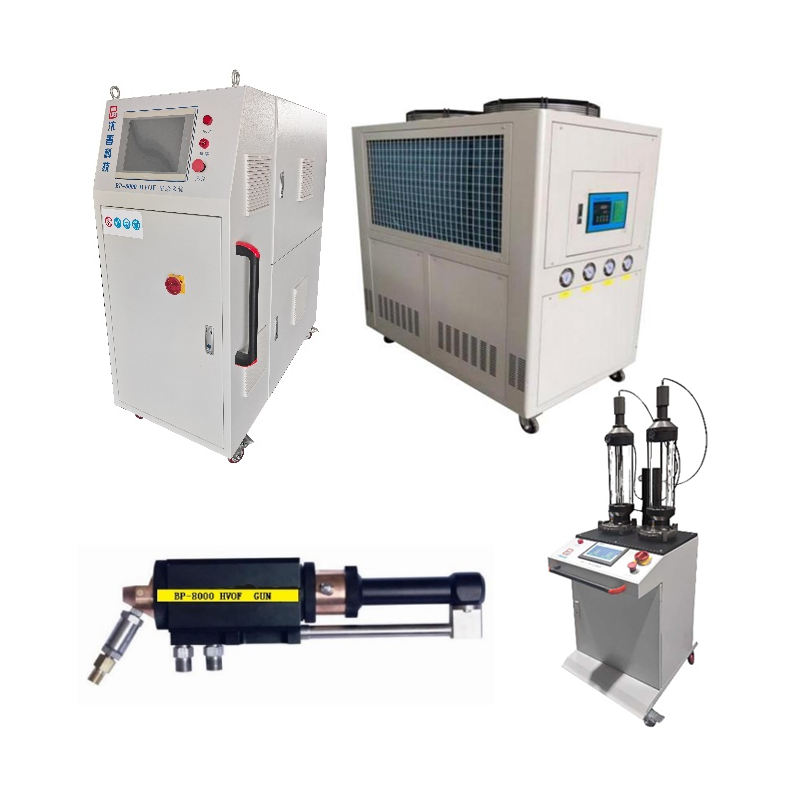

HVOF Spray Equipment is designed for thermal spraying Metal powder like Tungstan Carbide or Ni-Cr coating to surface treatment process. It can apply for small parts, large workpiece coating or spraying, Mechanical Spraying, project construction spraying or coating the Metal, Carbide, Nitride powders. The HVOF spraying Line consists of Spraying Gun, Control Cabinet, Powder feeder, and Water Chiller and also required joint pipes.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

HVOF spray equipment

BP-8000 Kerosene HVOF

coating material

WC,Ni-Cr chrome carbide etc.

Fuel

kerosene

powder feeding gas

Nitrogen or Argon

parameter

pressure

flow

kerosene

12Bar

15-24L/H

oxygen

16 Bar

800-1500L/min

powder feeding gas

5 Bar

10 L/min

powder feeding velocity

0-250g/min

Particle Size

10-45μm

Coating Bond Strength

     >80MPa

Coating Porosity

＜1%

   Flame Temp.

3000℃

Control System

Siemens PLC + Touch Screen

Compressor

30HP Dual drive, American Copeland



BP-8000 HVOF Spray Equipment is used Kerosene as fuel. Its Performence is equivalent to imported equipment.

1. It uses Kerosene as fuel, Oxygen as combustion gas, air and water as the cooling.

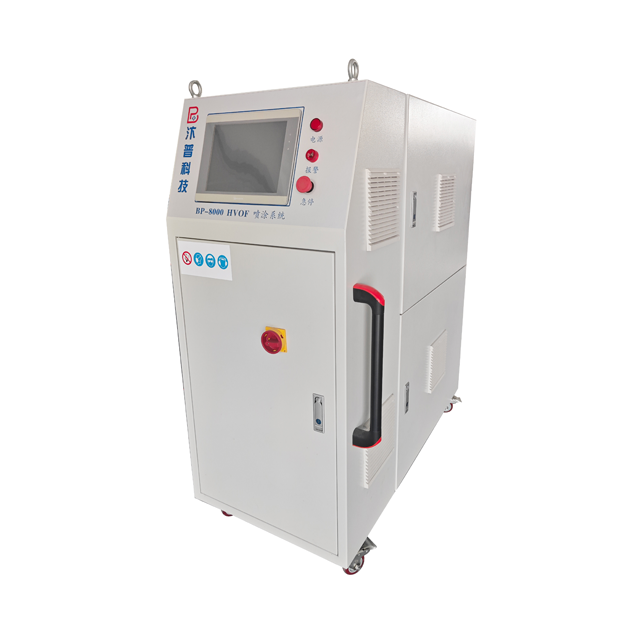

2. The control cabinet is controlled by siemens PLC and touch screen operation. It's superior performance, reliable quality, convenient operation and lower cost. It can be accomplished the automatic operation of the spraying process, and can be monitored in real time for the system of spraying parameters. It will respond immediately for the system faults.

3. Gas is controlled by Imported MFC(Mass Flowmeter) .

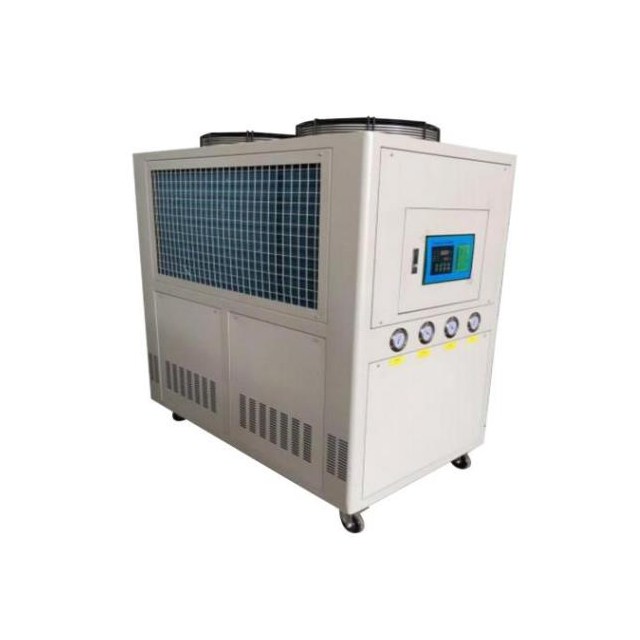

4. Water Chiller is with 30HP dual compressor from American Copeland.

Application for:

Wire drawing wheel, Pagoda wheel, mold, gear, flue fan blade, plug gauge, turbine blade, exhaust valve, piston rod, lithium battery equipment pipeline, sealing ring, pump bushing.

Previous:
Next:
BP-8000 Kerosene HVOF Spray Equipment

Related Products

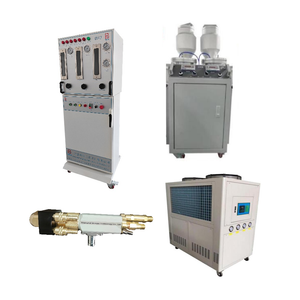

BP-5000 Gas Fuel HVOF Spray Equipment
