BP-5000 Gas Fuel HVOF Spray Equipment

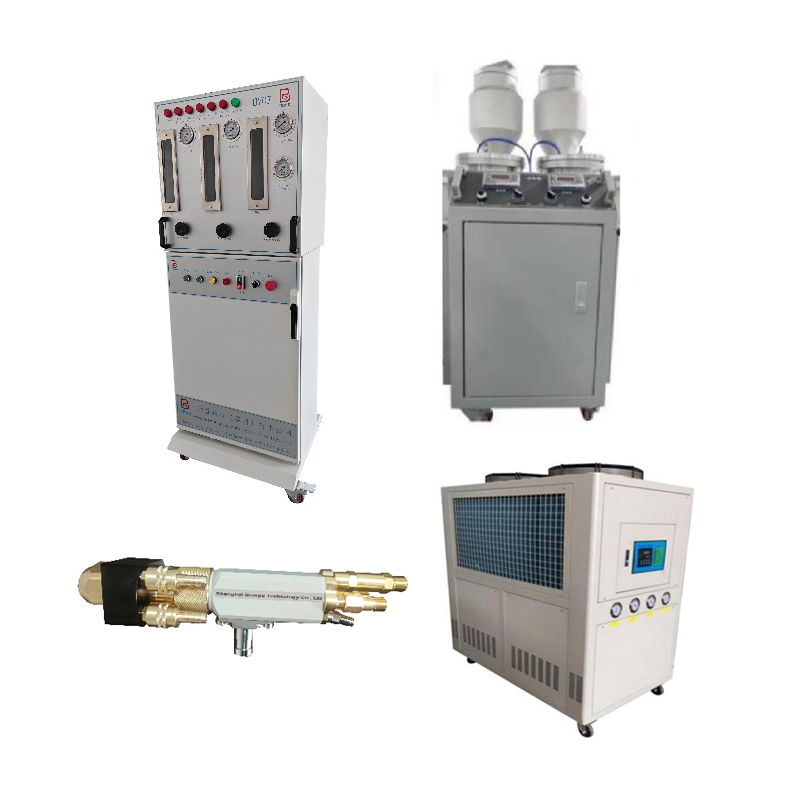

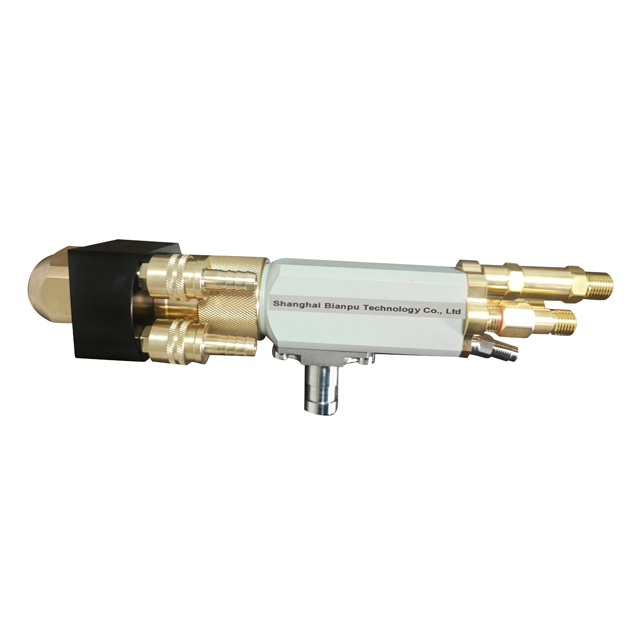

HVOF Spray Equipment is designed for thermal spraying Metal powder like Tungstan Carbide or Ni-Cr coating to surface treatment process. It can apply for small parts, large workpiece coating or spraying, Mechanical Spraying, project construction spraying or coating the Metal, Carbide, Nitride powders. The HVOF spraying Line consists of Spraying Gun, Control Cabinet, Powder feeder, and Water Chiller and also required joint pipes.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

HVOF spray equipment

BP-5000 gas fuel HVOF

coating material

WC,Ni-Cr chrome carbide etc

Fuel

C3H8

powder feeding gas

 Nitrogen or Argon

Gas parameters

pressure

flow

Fuel

8 Bar

88L/min

oxygen

12Bar

 305L/min

Air

8Bar

420L/min

powder feeding gas

11 Bar

18L/min

powder feeding velocity

0-250g/min

Particle Size

15-45μm

Coating Bond Strength

>60MPa

Coating Porosity

1%-3%

Flame Temp.

2700℃

Control System

Siemens PLC

Compressor

6HP single drive, Japan SANYO

BP-5000 HVOF Spray Equipment is used Propane Gas as fuel. It's more economical and lower consumption.

1. It uses propane as fuel, Oxygen as combustion gas, air and water as the cooling.

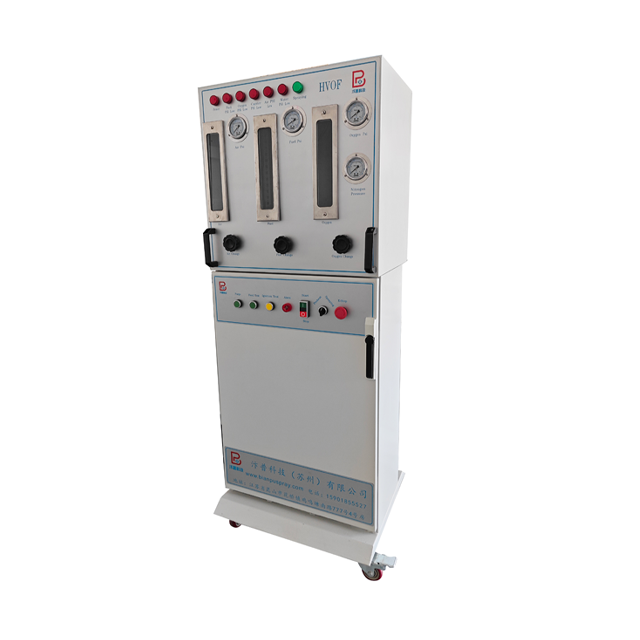

2. The control cabinet is controlled by siemens PLC. It's superior performance, reliable quality, convenient operation and lower cost. It can be accomplished the automatic operation of the spraying process, and can be monitored in real time for the system of spraying parameters. It will respond immediately for the system faults.

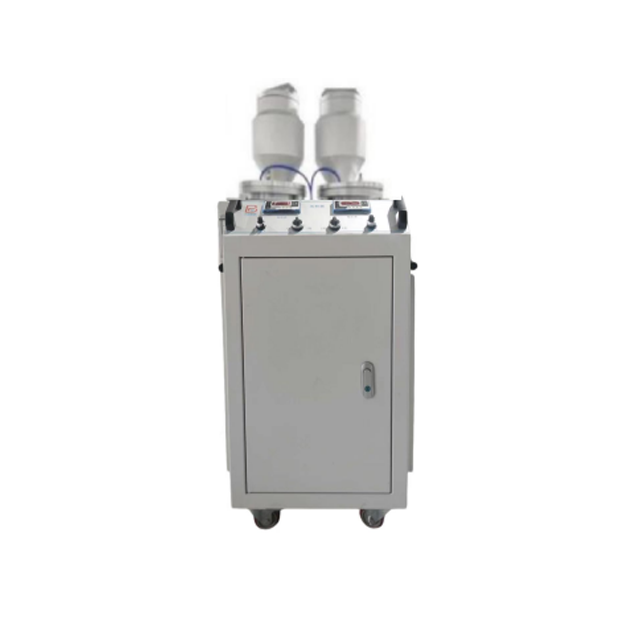

3. Powder buckets are explosion-proof, buttons control the start and stop.

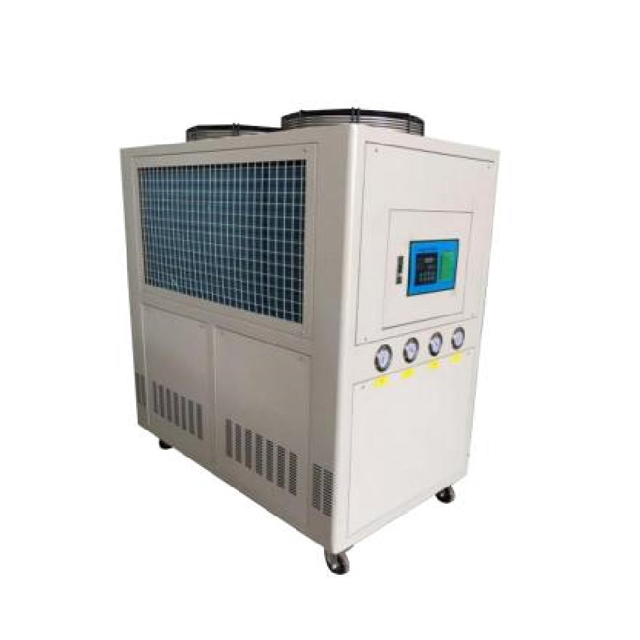

4. Water Chiller is with 6HP single compressor from Japan SANYO

Application for:

Wire drawing wheel, Pagoda wheel, mold, gear, flue fan blade, plug gauge, turbine blade, exhaust valve, piston rod, lithium battery equipment pipeline, sealing ring, pump bushing.

Previous:
Next:
BP-5000 Gas Fuel HVOF Spray Equipment

Related Products

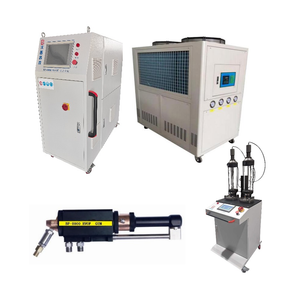

BP-8000 Kerosene HVOF Spray Equipment
