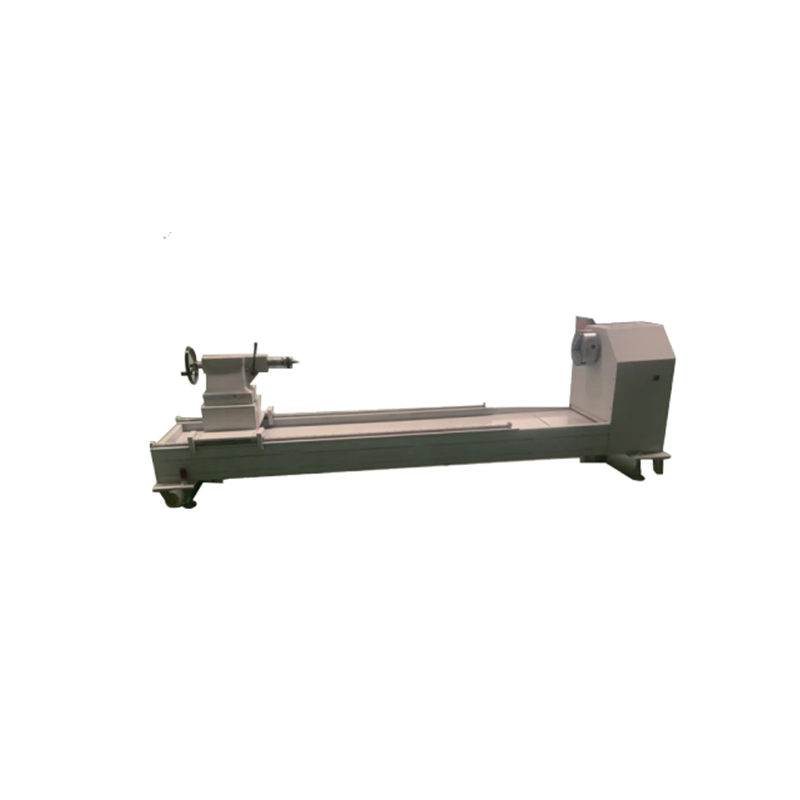

Horizontal Rotary Table

The horizontal turntable is a special tool for manufacturing thermal spraying roller parts. It is mainly used to clamp and rotate the parts horizontally during the spraying process.

Quantity:
Availability:





Inquire Add to Basket

Product Advantage

1. The horizontal turntable features a chuck on one side and a centering plate on the other. The turntable's clamping length can be adjusted to suit the length of the workpiece. A manual rocker is provided at one end, allowing for easy movement of the tailstock. The gearbox and motor are dust-proof.

2.Horizontal Turntable Technical Parameters:

① Max. load 5T; Workpiece length 0-9000mm; Max. workpiece diameter 500mm;

② Digital display for speed adjustment; Worktable rotation speed 10-200 rpm;

③ Variable frequency drive; Spindle motor power 15 kW.

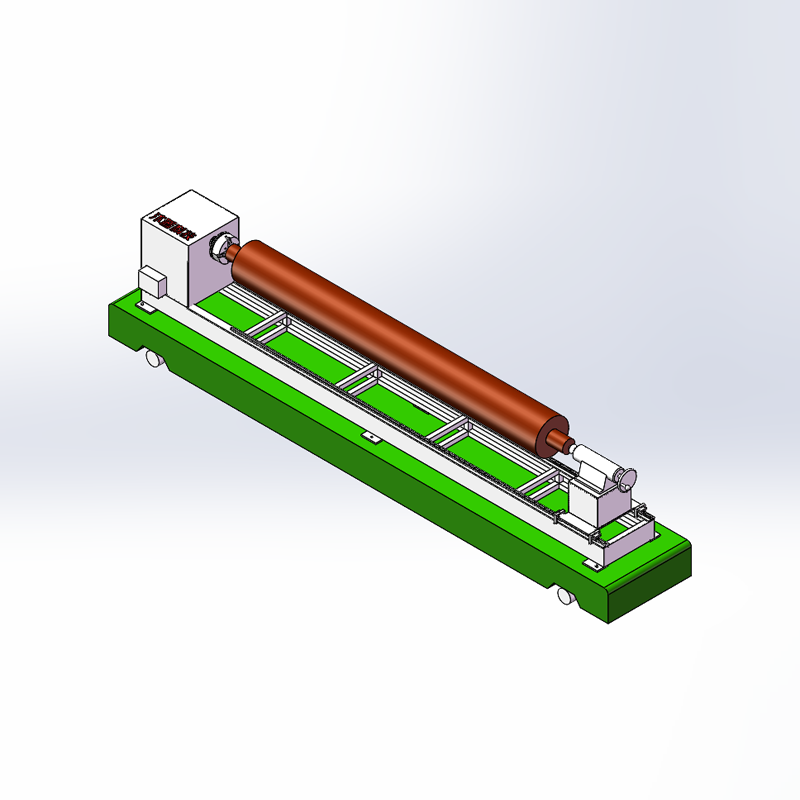

Horizontal Rotary Table
