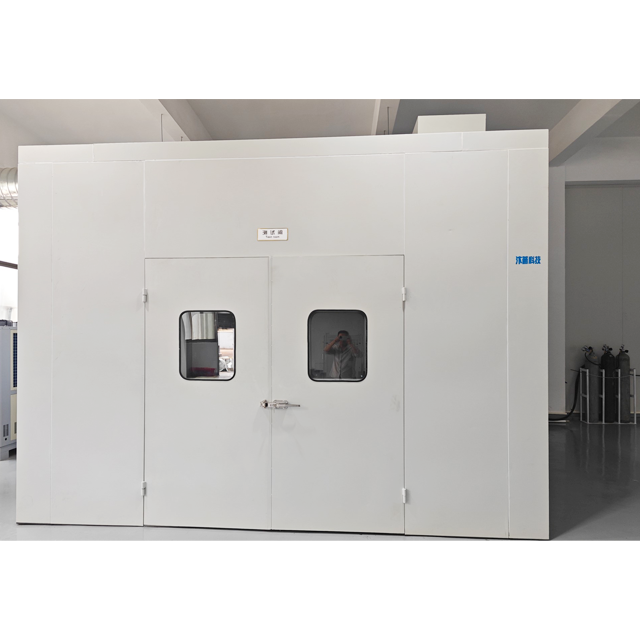

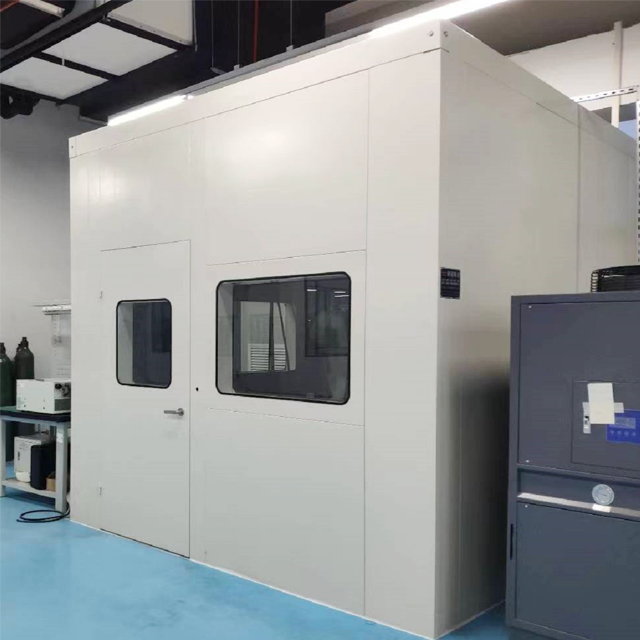

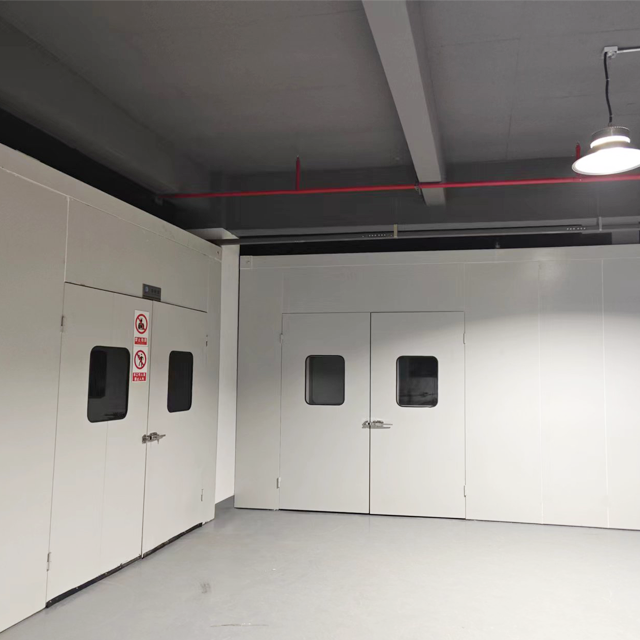

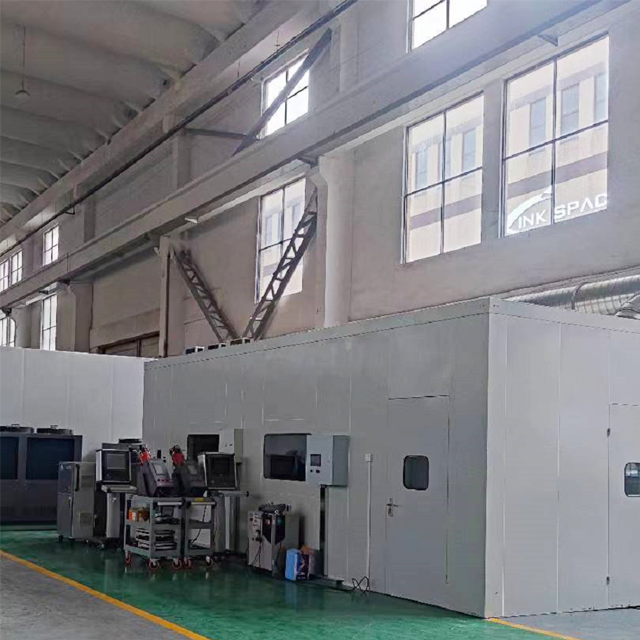

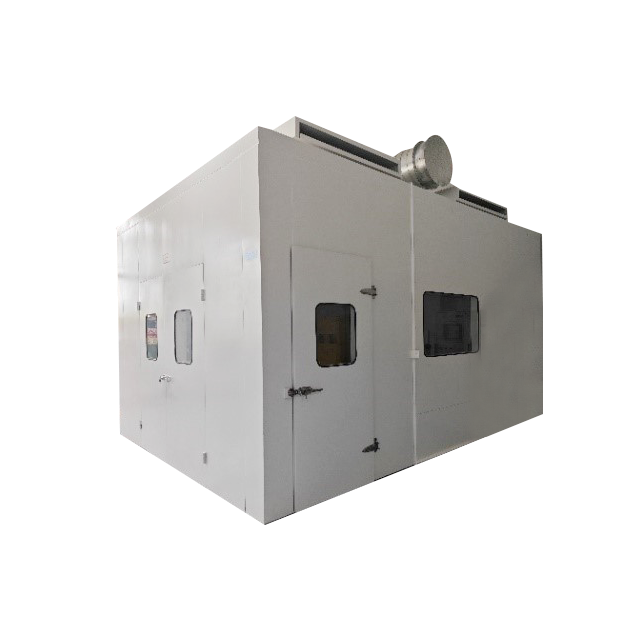

This ventilated spray coating booth serves as a dedicated enclosure for thermal spraying processes in industrial settings. The system reduces operational noise levels from 140-150 dB to 75 dB, aligning with workplace noise exposure regulations. The enclosure contains airborne dust and fumes generated during coating applications, supporting occupational safety and environmental compliance for commercial operations.
The primary chamber forms the operational space for spray coating activities. The booth dimensions can be customized to accommodate specific coating requirements and facility layouts.

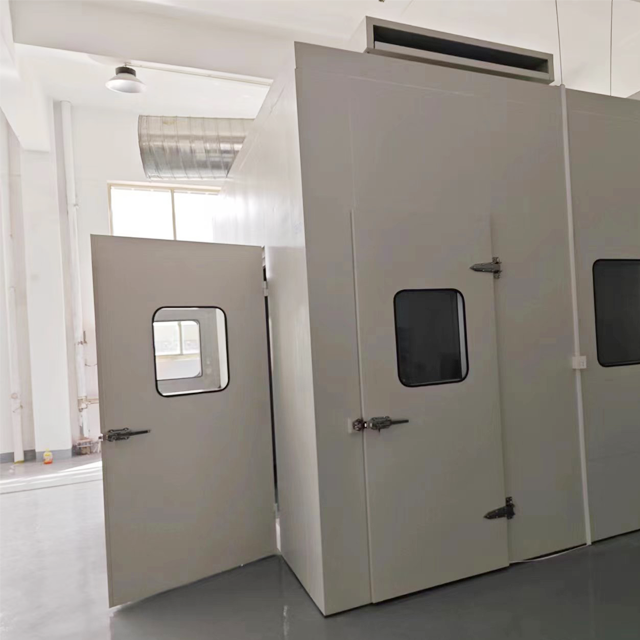

Single-side access doors measure W850 × H1800 mm, while double-door configurations provide 2 × 2.2 m entry points for equipment and material handling.
Multi-layer vacuum armored glass windows enable visual monitoring of coating processes. Integrated suction silencers and exhaust hoods manage airflow and particulate containment.
Parameter | Specification |
Wall Thickness | 100-150 mm acoustic panels |
Noise Reduction Performance | 140-150 dB input to 75 dB output |
Single Door Dimensions | 850 × 1800 mm |
Double Door Dimensions | 2000 × 2200 mm |
Window Construction | Multi-layer vacuum armored glass |
Structural Service Life | 20+ years |
The 100-150 mm thick acoustic wall construction provides consistent sound attenuation across the operational frequency range. This design maintains workplace noise levels within regulatory limits for personnel exposure.
The enclosure maintains structural integrity for over 20 years under continuous industrial operation. The construction materials resist degradation from coating particulates and cleaning procedures.
Booth dimensions, door configurations, and window placements can be adjusted to match specific facility requirements and coating process parameters.
This ventilated spray coating booth supports thermal spraying operations across manufacturing sectors including metal fabrication, aerospace component processing, automotive part production, and industrial equipment refurbishment. The system enables enterprises to conduct coating activities while meeting occupational health and environmental regulatory requirements.
The system reduces thermal spray operation noise from 140-150 dB to 75 dB, meeting standard workplace noise exposure limits.
Yes, the enclosure dimensions, door configurations, and window placements can be customized according to specific coating process and facility layout needs.
The booth maintains structural integrity for over 20 years under regular industrial operating conditions.
The observation windows utilize multi-layer vacuum armored glass construction for acoustic insulation and impact resistance.
