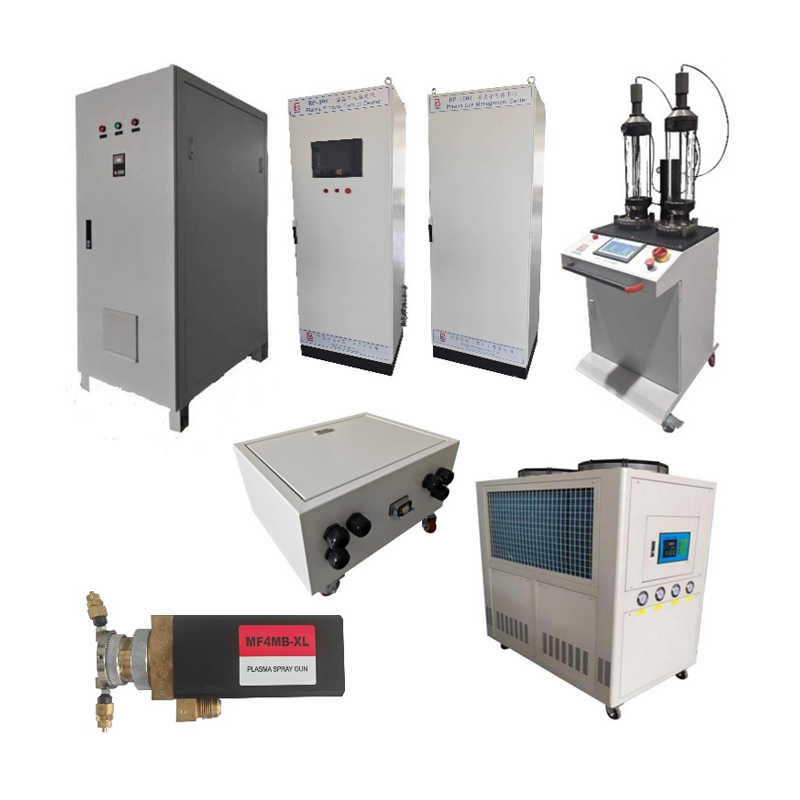

BP-1000 Plasma Spray Equipment

Plasma Spray Equipment is is designed for thermal spraying Metal, Alloy and Ceramic coating to surface treatment process. Application in spraying or coating the Metal, Oxide, Alloy, Carbide, Nitride, Boride and complex powders on the small parts, large workpiece, Mechanical, project construction and Medical Industry so on. Making the surface to achieve Anti-corrosion, Wear resisting, High Hardness, long-lasting, High Temp. resisting, Oxidation resistance.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Coating material

Metal (Ni Cr, Stainless steel),

Ceramic composite powder (Al₂O₃, AT, Y₂O₃, YSZ, Nickel-coated graphite, Aluminum silicon powder, Niobium oxide)

Mian Gas & Pressure

Nitrogen (7 Bar) ;  Argon(7 Bar)

Secondary Gas & Pressure

Hydrogen (4 Bar)

Gas Using Type

Argon, Argon + Hydrogen；Argon + Nitrogen；Argon + Helium

Argon control

100L Imported MFC

Hydrogen control

20L Imported MFC

Capacity of Powder barrel

 3.0L * 2

Powder feeding velocity

0-180g/min

Coating Porosity

3%-5%

 Water Chiller Capacity

150L

Spray Gun Power

Max 50KW

Power supply

180KW

Cooling System

Water Cooling

Input Voltage

3P 380V  50/60Hz

Control system

Siemens PLC + touch screen+ imported MFC

Compressor

 15HP Imported American Copeland

BP-1000 model is more intelligent, all touch screen operation, independent gas controll center, lower consumption.

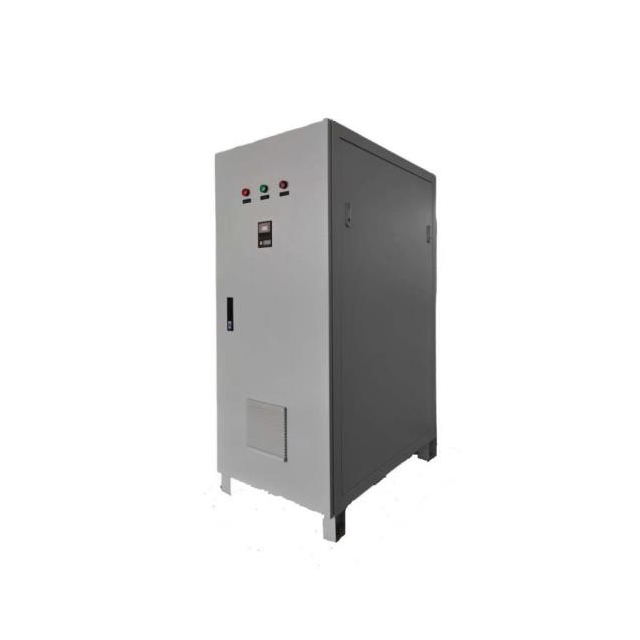

1. The power supply is 180KW with three IGBT Modules, water-cooled electrical system, small size, high efficiency, low power consumption, good heat dissipation and low fault.

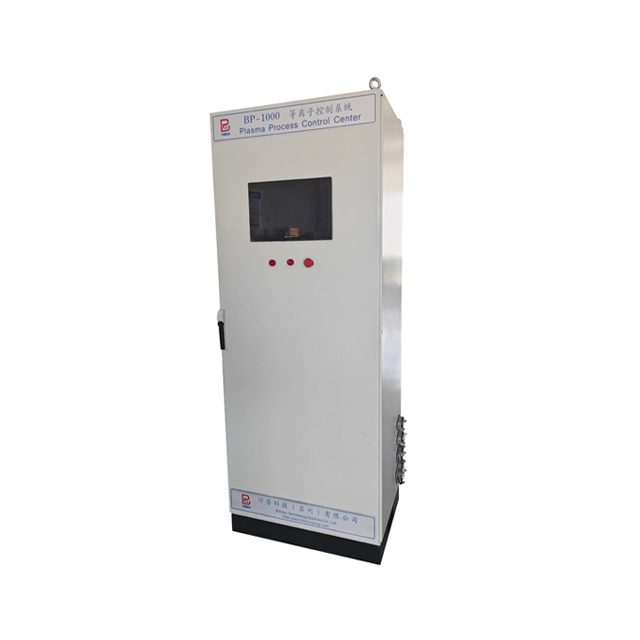

2. The control cabinet adopts 15'' touch screen with Simense PLC digital control. Main Gas is controlled by Improted MFC. It can store and call up the spraying parameter formula and onnect with Robot and interlock.

3. It has independent Gas controll center. It's more safty and easier operation and maintanence.

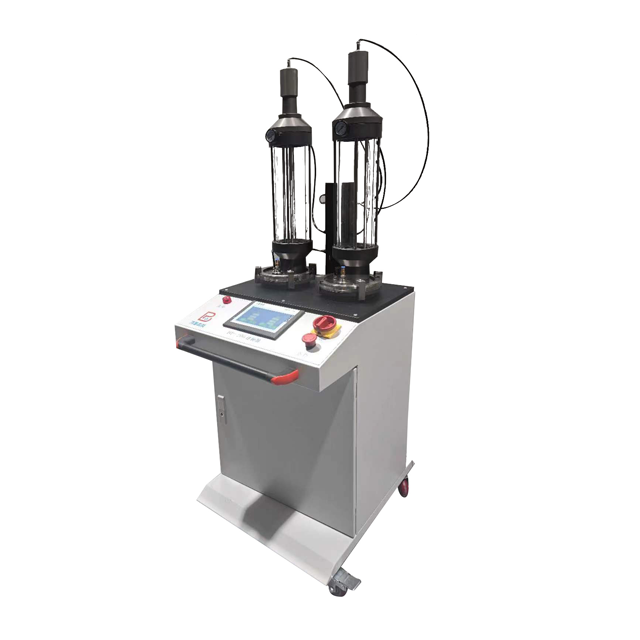

4. The powder feeder is touch screen with Simense PLC digital control. The powder feeding gas is controlled by imported MFC.

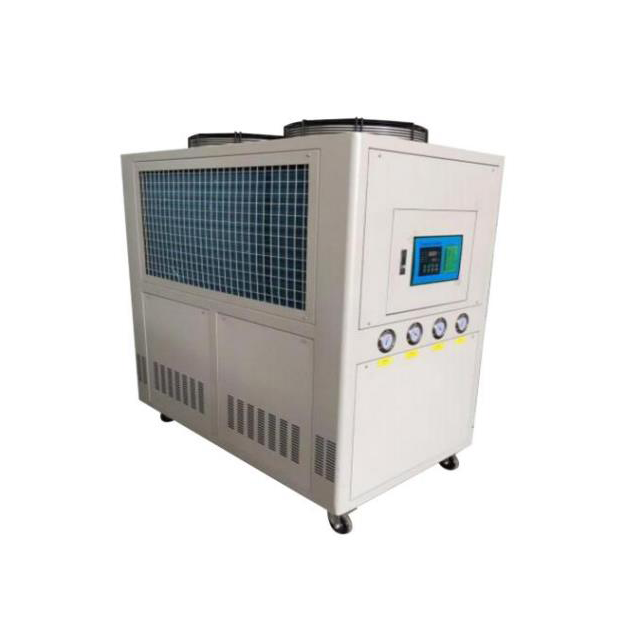

5. Water Chiller is dual-channel water cooling, one channel to the spray gun, water pressure and water temperature adjustable; the other channel to the power supply, water temperature adjustable; It's with 15 HP Compressor imported America Copeland.

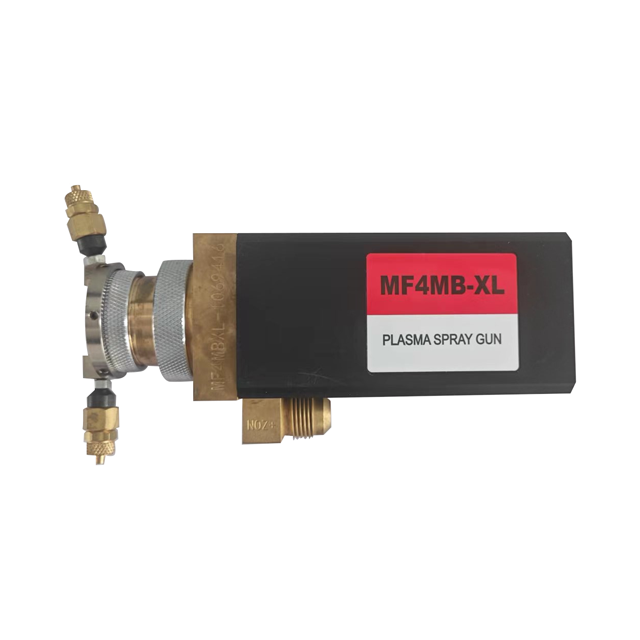

6. It's equipped with MF4MB-XL spray gun.

7. Imported Italy gas pipes.

Application for：

Aerospace, Cookware, Bears, Graphite boat,Roller, Guide wheel, Sleeve. Shafts, Artificial joint prosthesis,Carbon fiber roller, Turbine blade, Hydrogen Production Nickel Plate,Electrode plate for sewage treatment.

Previous:
Next:
BP-1000 Plasma Spray Equipment

Related Products

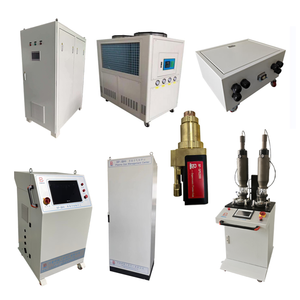

BP-1200 Supersonic Plasma Spraying Equipment
BP-1200 Supersonic Plasma Spraying Equipment

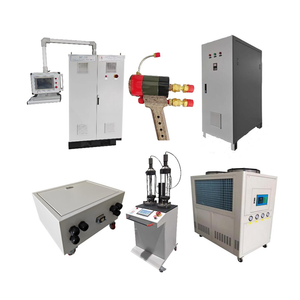

BP-160 Plasma Spray Equipment
BP-160 Plasma Spray Equipment

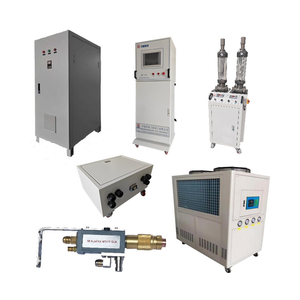

BP-120 Plasma Spray Equipment
