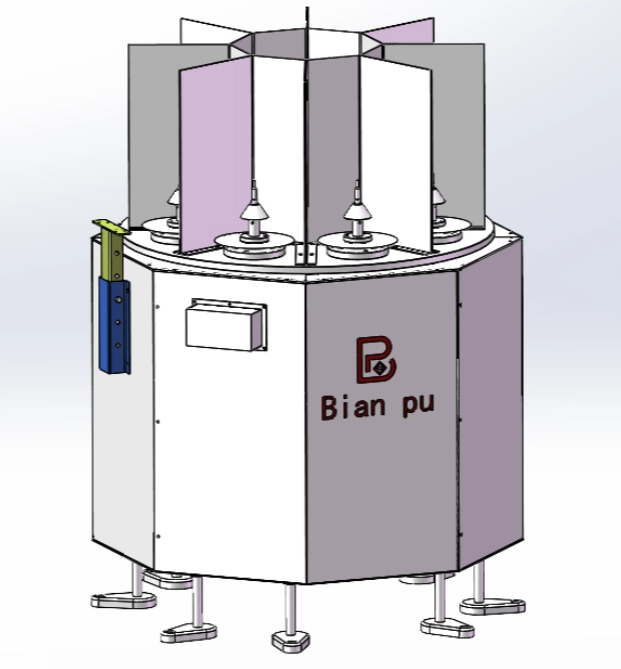

This multi-station indexing turntable system integrates sequential part loading, automated spray positioning, and controlled cooling cycles within a single compact footprint. Designed for mass production environments, it addresses common challenges in industrial spraying operations, including low spray booth utilization and production interruptions between part changes. With programmable index timing and independent station rotation, this system streamlines coating workflows and supports consistent output for commercial manufacturing facilities. The design prioritizes operational efficiency, allowing multiple production steps to occur simultaneously across different stations.
The system features 8 individual work stations, enabling parallel execution of loading, spraying, and cooling processes. This design eliminates idle time for spray equipment, as one station can undergo coating while others handle part loading or post-spray cooling. The sequential rotation ensures a continuous production flow, directly increasing spray booth utilization rates for high-volume manufacturing operations.
This indexing turntable can be linked with industrial robot systems for fully automated spraying operations. When the coating process on one product is completed, the turntable automatically rotates to the next pre-loaded station. This seamless transition eliminates manual part handling between cycles and achieves uninterrupted spraying processes, reducing labor requirements and production cycle times.
The rotation speed of each work station and the index timing between stations are fully programmable. These parameters can be adjusted according to specific spraying requirements, such as different coating thicknesses, drying times, or part sizes. This flexibility allows the system to adapt to a wide range of product types and coating specifications without extensive reconfiguration.
Constructed from heavy-duty steel, the turntable supports a maximum load of 200 kg per station, making it suitable for spraying large or heavy industrial components. The robust structure minimizes vibration during operation, ensuring consistent spray positioning accuracy over extended use.
Parameter | Value |
Number of work stations | 8 |
Maximum load capacity per station | 200 kg |
Construction material | Heavy-duty steel |
Control system | PLC control |
Safety features | Safety interlocks |
Integrated processes | Sequential part loading, automated spray positioning, controlled cooling cycles |
Operation capability | 24/7 continuous operation |
Adjustable parameters | Index timing, station rotation speed |
This multi-station indexing turntable is designed for use in various industrial coating facilities. It is particularly well-suited for applications requiring high throughput and consistent coating quality, including automotive component spraying, metal hardware coating, household appliance shell finishing, and industrial machinery part painting. The system’s modular design allows it to be integrated into existing production lines or used as a standalone spraying solution.
The system incorporates safety interlocks that prevent operation when access doors are open or when abnormal conditions are detected. These features protect both personnel and equipment during production runs. The PLC control system provides precise control over all turntable functions, ensuring repeatable operation and minimizing variations in coating results. The control interface allows operators to easily adjust parameters and monitor production status in real time.
Yes, the system is designed to be linked with industrial robot systems for automated spraying operations. It communicates with robot controllers to synchronize turntable rotation and spray cycles.
Each work station has a maximum load capacity of 200 kg, supporting the spraying of large and heavy industrial components.
Yes, both the station rotation speed and the index timing between stations are fully programmable and can be adjusted according to specific spraying requirements.
Yes, the heavy-duty steel construction and PLC control system enable reliable 24/7 continuous operation in industrial coating facilities.
For industrial clients looking to optimize their spraying production lines and increase throughput, this multi-station indexing turntable offers a space-efficient and flexible solution. Contact us to receive detailed technical documentation and discuss how this system can be tailored to your specific production needs.
