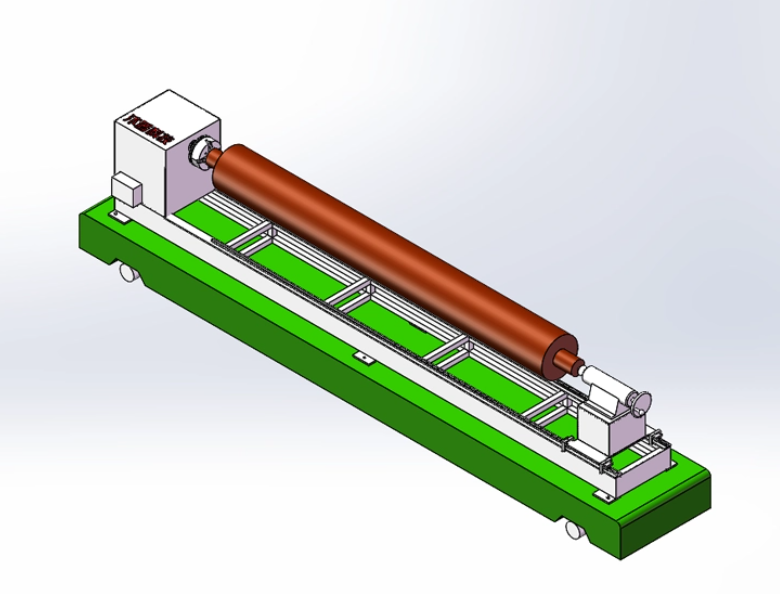

The Horizontal Motorized Rotary Table represents purpose-built workholding equipment designed for spray processing lines. Engineered specifically for thermal spraying operations on cylindrical components, this system enables consistent rotational movement during coating application. The equipment facilitates concentric rotation of workpieces, ensuring uniform coating thickness distribution across the entire surface area. This rotary table integrates into existing spray processing lines, supporting continuous production workflows for commercial procurement operations. The design accommodates large-format workpieces, making it suitable for industrial applications that involve heavy and elongated components.
The horizontal rotary table incorporates a chuck mechanism on the drive side and a centering plate on the tailstock side. This dual-end configuration secures workpieces during rotational movement, preventing misalignment during spray application. The clamping length adjusts according to workpiece dimensions, providing flexibility for varying production requirements. A manual rocker mechanism enables straightforward tailstock repositioning, reducing setup time between production runs. This positioning system maintains axial alignment throughout the rotation cycle, contributing to consistent coating results for business operations.
Both the gearbox and motor feature dust-proof construction, addressing the challenging environment of spray processing facilities. This protective design prevents airborne coating particles and process dust from entering critical drive components. The sealed assembly extends equipment service life and reduces maintenance requirements in production environments. This engineering consideration supports uninterrupted operation for enterprise customers running continuous spray processing lines.
The system utilizes variable frequency drive technology, allowing operators to adjust rotational speed according to specific coating requirements. A digital display provides real-time speed readout, enabling precise speed setting and monitoring. Speed adjustment capability accommodates different coating materials, spray gun traverse rates, and workpiece diameters. The 15 kW spindle motor delivers sufficient torque for maintaining consistent rotation under full load conditions.
Parameter | Specification |
Maximum Load Capacity | 5 T |
Workpiece Length Range | 0-9000 mm |
Maximum Workpiece Diameter | 500 mm |
Speed Display | Digital |
Worktable Rotation Speed Range | 10-200 rpm |
Drive System | Variable frequency drive |
Spindle Motor Power | 15 kW |
This rotary table serves as core equipment for thermal spraying operations on roller components. The concentric rotation ensures even deposition of thermal spray materials, producing consistent surface characteristics. Applications include wear-resistant coatings, corrosion protection layers, and functional surface treatments for industrial rollers. The equipment handles the weight and dimensions typical of heavy industrial rollers used in manufacturing processes.
Within the printing industry, this rotary table supports coating application on press rollers requiring precise surface finish characteristics. In steel manufacturing operations, the equipment facilitates protective coating application on cylindrical steel components used in production machinery. The adjustable clamping system accommodates the varying dimensions encountered across these industry sectors, providing a versatile solution for commercial users with diverse production requirements.
The horizontal motorized rotary table integrates into roller manufacturing lines, serving as the standard workholding solution during the coating stage. Manufacturers producing rollers for conveyor systems, printing presses, steel processing equipment, and other industrial machinery utilize this equipment for consistent coating application. The 9000 mm length capacity accommodates the extended format rollers common in heavy industrial equipment production.
The Horizontal Motorized Rotary Table supports a maximum workpiece load of 5 tonnes. This capacity accommodates heavy industrial rollers and large cylindrical components encountered in spray processing operations.
Yes, the clamping length adjusts to accommodate varying workpiece dimensions. The system supports workpiece lengths ranging from 0 to 9000 mm, with manual tailstock positioning enabling quick reconfiguration between production runs.
The worktable operates within a speed range of 10-200 rpm. Variable frequency drive technology enables continuous speed adjustment, with a digital display providing accurate speed readout for process control.
The spindle drive incorporates a 15 kW motor, delivering sufficient torque for maintaining consistent rotational speed under maximum load conditions during spray processing operations.
