Infrastructure decay presents a massive liability for transportation departments and structural contractors. Traditional barrier coatings applied to structural steel fail repeatedly when exposed to harsh marine environments, aggressive de-icing salts, and high-stress load cycles. Once a liquid paint system breaches, moisture and chlorides penetrate the substrate. This initiates under-creep corrosion that destroys structural integrity from the inside out. Achieving a 75- to 100-year service life requirement demands a better approach than passive paint systems can provide.

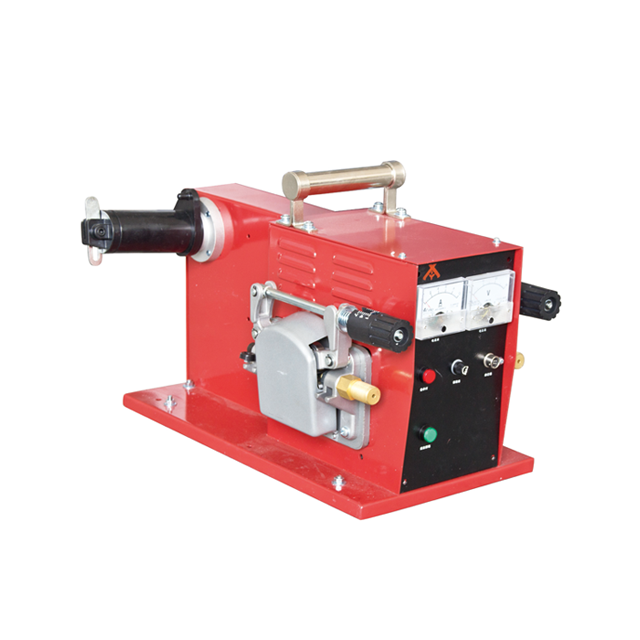

To meet stringent FHWA specifications without recurring maintenance interventions, contractors rely on active galvanic protection. Arc Spray Equipment serves as the industry standard for applying sacrificial zinc coatings directly to structural steel. This metallizing process bridges the gap between shop-applied hot-dip galvanizing and field-applied liquid coatings. By atomizing molten metal and propelling it onto prepared surfaces, crews establish an immediate, high-density mechanical bond that delivers decades of uninterrupted bridge corrosion protection.
Mechanism of Action: Arc spray equipment utilizes an electric arc to melt twin zinc wires, using compressed air to atomize and propel the molten metal onto bridge steel, creating an immediate, high-density mechanical bond.
Lifecycle ROI: While initial application costs are higher than standard paint systems, zinc arc spraying provides active galvanic protection that prevents under-creep corrosion, drastically reducing total lifecycle maintenance.
Equipment Evaluation: Selecting the right zinc coating equipment requires balancing deposition rates, constant wire feed speed, power supply stability, and field portability for complex bridge geometries.
Quality Assurance: Long-term performance is strictly dependent on precise surface preparation (white metal blast) and adherence to AMPP/NACE inspection standards for coating thickness and adhesion.
Thermal spraying relies on precise electrical and mechanical synchronization. Two electrically conductive zinc wires, typically 1/8 inch (3.17mm) or 3/16 inch (4.76mm) in diameter, feed continuously into a specialized spray gun head. A dedicated drive system pushes or pulls these wires at a synchronized speed to ensure they intersect exactly at the nozzle. When the wires meet, a direct current short circuit occurs.
This arc ignition operates between 20 and 40 volts, generating intense localized heat exceeding 4,000°C. The extreme temperature instantly melts the tips of the advancing zinc wires. Modern power supplies utilize closed-loop control boards to monitor and adjust wire feed speeds in real-time. Maintaining this constant speed prevents sputtering, eliminates wire stubbing, and ensures a uniform film build across the steel substrate. When operators work 80 feet up in a manlift, voltage drops from long lead cables can cause erratic feeding. The control board compensates for these drops, keeping the arc stable.
Melting the zinc is only the first phase. Delivering it to the substrate requires high-velocity atomization. A concentrated airstream, supplied by a heavy-duty diesel compressor delivering at least 375 CFM at 90 to 120 psi, intersects the molten zinc right at the arc point. Contractors must use inline moisture separators and air coolers to ensure this air remains completely dry and oil-free.
The deposition process follows a specific sequence:
The compressed air stream hits the molten zinc exactly at the arc point, shearing the liquid metal into microscopic droplets.
These droplets accelerate in a highly directional, high-velocity cone toward the blasted steel surface.
Kinetic energy forces the droplets to flatten into disc-like shapes known as splats upon impact, driving them deep into the angular anchor profile.
The splats resolidify almost instantly, locking mechanically into the steel topography.
Because the heat remains localized at the gun nozzle and the droplets cool instantly upon impact, the process transfers minimal thermal energy to the substrate. This prevents warping and ensures the metallurgical properties of the structural steel remain completely unaltered.
Traditional epoxy and polyurethane systems rely entirely on barrier protection. They form a passive film that blocks moisture and oxygen from reaching the steel. Bridges endure constant physical abuse from debris impacts, thermal expansion, and structural flexing. Once a barrier bridge steel coating scratches or chips, the exposed steel begins to rust immediately. Rust expands, lifting the surrounding paint and accelerating coating failure.
Zinc metallizing provides active galvanic protection. Zinc sits lower on the galvanic series than carbon steel, making it less noble and more electrochemically active. When exposed to an electrolyte like saltwater, the zinc acts as a sacrificial anode. It corrodes preferentially, sacrificing itself to protect the underlying steel cathode. Even if the coating suffers mechanical damage that exposes the bare steel, the surrounding zinc continues to protect the exposed area, stopping under-creep corrosion entirely.
For infrastructure located in aggressive marine environments, engineers specify a duplex coating strategy. This involves applying a thermal spray zinc base layer followed by a specialized liquid sealer or topcoat paint. The duplex system leverages the strengths of both active and passive protection mechanisms.
A synergistic effect occurs within a duplex system. As the zinc slowly oxidizes over decades, it produces zinc oxides and zinc carbonates. Unlike iron oxide, which expands massively and destroys coatings, zinc corrosion products are dense. These byproducts naturally migrate outward, filling the microscopic pores of the topcoat. This self-healing mechanism seals the entire system against chloride ingress, creating a shield against seawater.
Bridge structures experience varying degrees of environmental stress depending on the specific zone. Splash zones, pilings, and lower structural members endure constant saltwater exposure and debris impact. Upper superstructures face primarily atmospheric weathering. Thermal spraying offers operational flexibility to accommodate these varying demands.
Operators apply coatings ranging from a light 2 mils (50 microns) to a heavy build exceeding 20 mils (500 microns) in a single, continuous application process. Liquid paints require multiple coats and long curing times to achieve high film builds. Zinc solidifies instantly. Contractors customize the dry film thickness dynamically, applying heavy builds to high-stress tube mill structures and standard builds to upper girders without changing equipment or waiting for solvent evaporation.
| Performance Metric | Traditional Liquid Epoxy/Polyurethane | Zinc Metallizing (Thermal Spray) |
|---|---|---|
| Protection Mechanism | Passive barrier only | Active galvanic and barrier |
| Damage Tolerance | Poor (rust under-creep begins immediately) | Excellent (sacrificial anode protects scratches) |
| Cure Time | Hours to days per coat | Instantaneous resolidification |
| Thickness per Pass | Limited by sagging and solvent entrapment | Variable (2 to 20+ mils in a single continuous pass) |
| Field Lifespan | 15 to 25 years before major rehab | 75+ years with minimal maintenance |

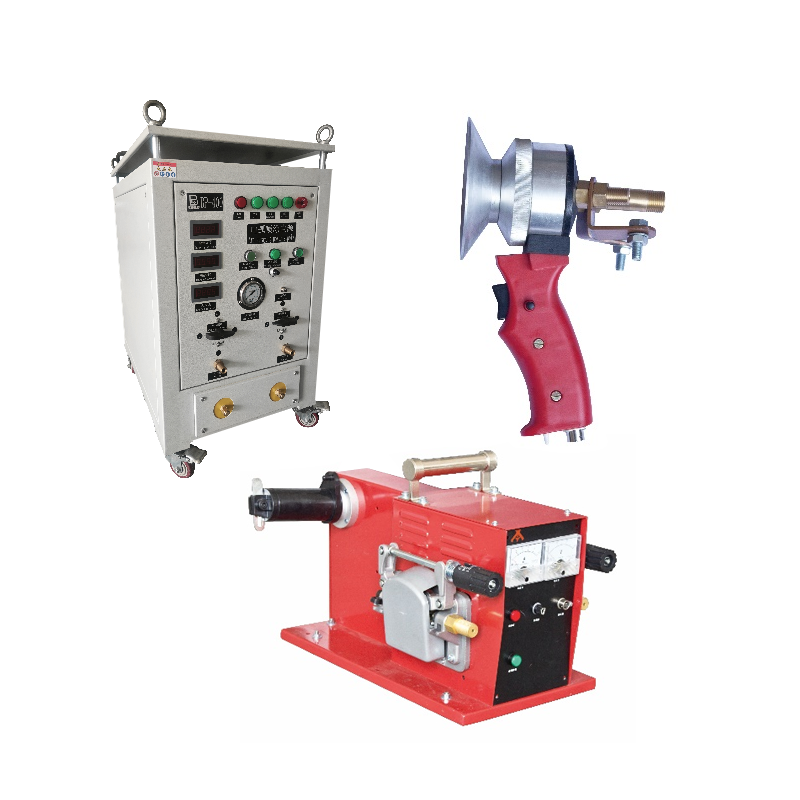

The core of any thermal spray operation is the power supply. Amperage capacity directly dictates the volume of zinc a contractor can apply per hour. Standard units operate around 350 amps, which handles shop work or smaller repairs. Large-scale bridge rehabilitation demands heavy-duty power supplies rated for 450 amps or higher.
Higher amperage correlates directly to higher zinc deposition rates. Pushing more wire through the gun faster reduces the total labor hours required to coat massive steel girders. On massive infrastructure projects, maximizing deposition rates determines project success. Faster application minimizes scaffolding rental time, reduces lane closure durations, and accelerates the overall project schedule.
The reliability of the wire feed mechanism separates average equipment from professional-grade systems. Push-only systems locate the drive motor at the power supply, pushing the wire through the conduit to the gun. Push systems bind and create friction, especially when operators use long lead cables or bend the conduit around tight bridge geometries.
Pull systems place the motor in the gun itself, adding weight and increasing operator fatigue. The industry standard for heavy field applications is the push/pull system. This configuration utilizes a synchronized motor at the feeder and a secondary assist motor in the gun. Push/pull mechanics maintain constant tension on the wire, preventing jams and ensuring a consistent feed rate even when operating 100 feet away from the main power supply.
Bridge rehabilitation rarely happens in a controlled shop environment. Field deployment requires zinc coating equipment designed specifically for mobility and environmental resilience. The physical footprint of the machine must allow for easy hoisting onto scaffolding or transport via utility vehicles.
Procurement teams evaluate ruggedized features. Power supplies mount on heavy-duty, large-wheeled carts capable of navigating uneven construction terrain. Control units need weather-sealing to protect sensitive electronics from dust, moisture, and abrasive blasting media. The system must connect easily with portable diesel air compressors commonly used on remote job sites.
Applying thermal spray coatings is physically demanding. Operators spend hours maneuvering around complex structural nodes, working out of position. Evaluating the ergonomics of the spray gun maintains high production rates. Lighter guns with balanced weight distribution reduce shoulder strain. Low-resistance triggers prevent hand fatigue over long shifts.
Safety controls protect the crew. Equipment features immediate emergency shut-offs and dead-man switches that cut power and air instantly if the operator drops the gun. Atomizing heavy metals generates airborne particulate. The equipment connects to high-efficiency dust collection and fume extraction systems to protect worker respiratory health and maintain site safety compliance.
The most common failure point for any thermal spray coating is inadequate surface preparation. Liquid paints sometimes wet out over minor surface contaminants. Atomized zinc requires a pristine, highly textured surface to achieve a mechanical bond. There is no chemical adhesion in metallizing. The zinc splats physically lock into the steel's topography.
Specifications mandate an SSPC-SP 5/NACE No. 1 White Metal Blast Cleaning. Crews remove all mill scale, rust, old paint, and invisible contaminants. Before blasting, inspectors test for non-visible chlorides using the Bresle patch method. Contractors use angular abrasive media, such as G40 steel grit or aluminum oxide, to create a sharp, jagged anchor profile. This profile measures between 2.5 and 4.0 mils deep. If the profile is too shallow or rounded from using steel shot, the zinc fails to adhere and delaminates under stress.
Ambient conditions dictate the success of field metallizing. Bare, white-metal blasted steel is highly reactive. If the surface temperature falls within 5 degrees of the dew point, invisible moisture condenses on the steel, causing flash rusting. Zinc applied over flash rust fails adhesion testing immediately. Contractors use sling psychrometers and data loggers to monitor conditions. They deploy industrial dehumidifiers and heaters inside the containment area to control humidity and steel surface temperatures.
Environmental containment serves a dual purpose. Beyond climate control, it captures zinc dust and overspray. Heavy metal particulates cannot escape into waterways or surrounding environments. Negative pressure containment systems equipped with HEPA filtration capture the dust during zinc arc spraying, ensuring strict environmental compliance and preventing contamination of the local ecosystem.
Quality assurance relies on rigorous, standardized inspection protocols throughout the application process. Inspectors verify the dry film thickness (DFT) using calibrated Type 2 magnetic gauges in accordance with SSPC-PA 2 standards. This ensures the contractor applies enough zinc to meet the engineered service life requirements without applying excessive builds that cause internal coating stress.
To verify the mechanical bond, inspectors perform tensile pull-off adhesion testing following ASTM D4541 guidelines. They glue a specialized 20mm or 50mm aluminum dolly directly to the zinc coating. Once the adhesive cures, they score the coating around the dolly down to the substrate. A hydraulic gauge pulls the dolly perpendicular to the surface until the coating fractures. The gauge records the exact force required to break the bond in pounds per square inch (psi). Passing these tests verifies compliance with DOT and FHWA specifications.
Traditional liquid paint systems require extensive maintenance cycles. Every 15 to 25 years, bridge owners fund massive rehabilitation projects involving full containment, abrasive blasting, and recoating. These recurring interventions cause massive disruptions to traffic and drain infrastructure budgets.
Deploying thermal spray zinc alters this maintenance timeline. By providing active galvanic protection that resists under-creep corrosion, metallizing extends the interval between major maintenance interventions to 75 years or more. This long-term operational viability allows transportation departments to allocate resources to other infrastructure needs rather than constantly chasing rust on existing steel structures.
Contractors select the appropriate feedstock wire based on the specific environmental exposure of the bridge. The two most common materials used in metallizing equipment are pure zinc and an 85/15 zinc-aluminum alloy.
Pure zinc provides superior galvanic activity. It is the preferred choice for submerged applications, splash zones, and environments with heavy chloride exposure. It sacrifices itself aggressively to protect the steel. The 85/15 zinc-aluminum alloy offers enhanced barrier protection alongside its galvanic properties. The addition of aluminum creates a less dense coating with higher temperature resistance and slower dissolution rates. This makes it highly effective for atmospheric exposures where extreme saltwater submersion is not a primary factor.
Arc spray technology remains the most reliable delivery mechanism for achieving FHWA-compliant, long-term bridge corrosion protection. By atomizing zinc and creating a high-density mechanical bond, this process delivers active galvanic defense that traditional barrier coatings cannot match. When executed with strict adherence to AMPP/NACE surface preparation standards, metallizing eliminates the frequent, disruptive recoating cycles that plague aging infrastructure.
For procurement teams and structural contractors, selecting the right equipment dictates field success. Prioritizing systems with constant push/pull wire feed reliability, rugged portability, ergonomic gun design, and consistent high-amperage output ensures high-volume deposition and quality control on complex bridge geometries.
Conduct a site-specific environmental assessment to select between pure zinc and 85/15 zinc-aluminum wire based on chloride exposure.
Review DOT material specifications to confirm your abrasive blasting media yields the required 2.5 to 4.0 mil angular profile.
Schedule an on-site equipment demonstration to test push/pull wire drive reliability under actual field conditions.
Verify all application personnel hold current AMPP/NACE certifications for thermal spray operations and quality control inspection.
A: Arc spray uses electricity to melt twin wires, offering higher deposition rates, lower operating costs, and better bond strength. Flame spray uses a combustible gas flame to melt a single wire or powder, which is slower and transfers more heat to the substrate.
A: Bridge specifications typically require a dry film thickness (DFT) between 8 to 12 mils (200 to 300 microns) for standard atmospheric exposure. High-stress areas like splash zones require up to 20 mils (500 microns) for extended protection.
A: Yes. Contractors use ruggedized carts, long push/pull wire leads, and negative-pressure environmental containment systems to apply zinc coatings directly on-site during structural rehabilitation projects.
A: Structural steel must achieve a White Metal Blast Cleaning standard (SSPC-SP 5/NACE No. 1). It requires a sharp, angular anchor profile of 2.5 to 4.0 mils to ensure the molten zinc mechanically locks into the substrate.
A: Inspectors use tensile pull-off adhesion testing according to ASTM D4541 standards. A dolly is glued to the coating, and a hydraulic gauge pulls it until it detaches, measuring the exact bond strength in pounds per square inch (psi).
A: A duplex system combines active and passive protection by applying a specialized liquid sealer or paint over the thermal spray zinc coating. This seals the zinc pores, extending the service life significantly in harsh marine environments.
