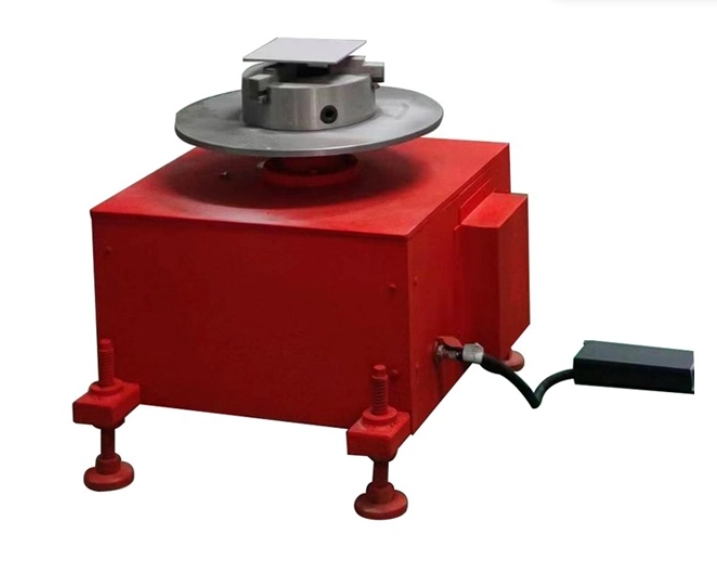

Designed specifically for automated thermal spray operations, this vertical indexing rotary table addresses key challenges in batch production coating processes, including inconsistent coating thickness on complex geometries, limited production uptime, and time-consuming workpiece repositioning. Equipped with servo motor drive and cast iron construction, this workholding solution delivers precise rotational control and stable operation across varying production demands. It supports continuous 24-hour production runs for industrial coating facilities, with custom size configurations available to align with specific spray booth dimensions and operational requirements.
Manufactured with cast iron, the rotary table provides enhanced structural rigidity during high-speed rotation. This rigidity minimizes operational vibration, ensuring consistent workpiece positioning throughout the entire spraying cycle. The stable platform allows for uniform coating application across parts with intricate shapes and irregular profiles, reducing post-processing rework rates.
The integrated servo motor drive system enables accurate rotational speed control and programmable positioning cycles. This functionality allows commercial users to adjust operation parameters to match different coating materials and workpiece specifications, significantly reducing setup time between production batches. The system supports both continuous rotation and indexed positioning modes for diverse process requirements.
Engineered for heavy-duty industrial use, the rotary table supports uninterrupted 24-hour production. This capability helps maximize equipment utilization and increase overall output for coating facilities operating around the clock, directly contributing to improved production efficiency and shorter lead times.
The equipment features a remote control interface, allowing operators to adjust settings and monitor operation from a safe distance. This design enhances workplace safety by reducing operator exposure to spray fumes and moving parts, while also streamlining workflow during production runs.
Parameter | Value |
Voltage | 3P AC380V |
Rotator Diameter | 800mm |
Control Type | Remote control |
Clamping Diameter | 0-600mm |
Rotate Speed | 10-300 r/min (adjustable) |
Load Capacity | 500kg |
Note: An additional rotational speed range of 1-60 RPM is specified for precision programmable positioning cycles.
To accommodate diverse industrial applications, custom size configurations are available to match the specific dimensions of existing spray booths. Additional customization options include modified clamping systems for non-standard workpieces and extended control functionality integrated with existing production line systems. All custom solutions are designed to maintain the same operational performance as standard models.
This vertical indexing rotary table is suitable for a wide range of surface treatment processes in industrial settings, including thermal spray coating lines, batch production spraying facilities, precision surface finishing operations, and industrial coating workshops. It is particularly effective for applications requiring uniform coating on complex components used in aerospace, automotive, and heavy machinery manufacturing.
The maximum load capacity of the rotary table is 500kg, making it suitable for most medium to large workpieces commonly used in industrial coating applications. The load rating applies to evenly distributed weight across the rotator surface.
Yes, custom size configurations are available to match the specific dimensions of existing spray booths. Our engineering team can also adjust the clamping system and control interface to integrate seamlessly with your current production setup.
The rotary table operates on a 3P AC380V power supply, which is standard for most industrial manufacturing facilities worldwide. Alternative voltage options can be discussed during the customization process for specific regional requirements.
The standard clamping system accommodates workpieces with diameters ranging from 0 to 600mm. For workpieces outside this range, custom clamping solutions can be designed to meet your specific production needs.
For commercial users seeking a workholding solution optimized for batch production spraying, our technical team can provide detailed product documentation, process compatibility assessments, and tailored configuration options. Contact us today to discuss your specific coating process requirements and receive a customized quote for your industrial operations.
